IVC-234GPT Industrial 4-Port 10/100/1000T 802.3bt PoE+ to VDSL2 Ethernet Extender

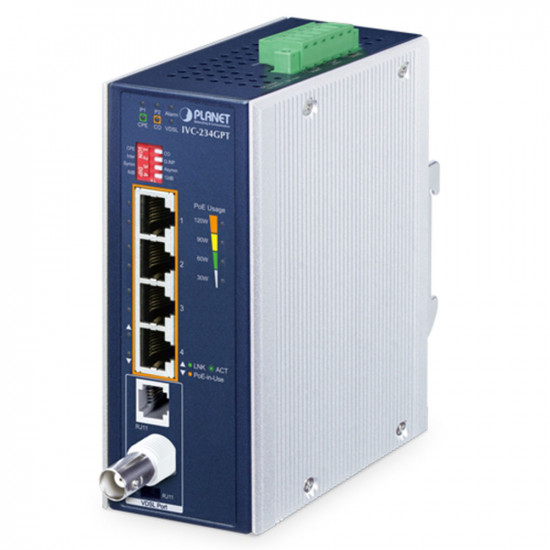

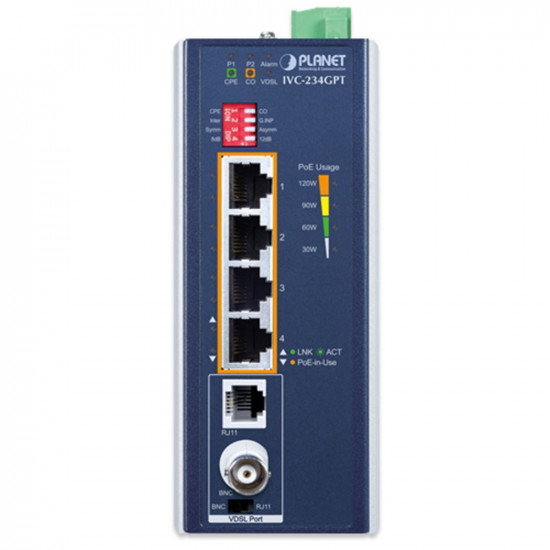

PLANET Technology offers the IVC-234GPT, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Extender with the brand-new VDSL2 Super Vector 35b profile. It features 4 x 10/100/1000BASE-T RJ45 ports with 802.3at PoE+ injector function, 1 x RJ11 female phone jack and 1 x BNC female connector for the line connection. Its IP30 aluminium housing makes the placement of the unit convenient. The IVC-234GPT is based on the coaxial and two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers distance extension and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for various IP network devices such as HD IP cameras, wireless access points, NVRs and digital signage. It also offers the fastest data transmission speed over the existing copper telephone lines without the need of rewiring. The IVC-234GPT works well with a pervasive coaxial or telephone line network with downstream/upstream data rate of up to 200/200Mbps symmetric and 300/100Mbps asymmetric over a distance of 300m, making a maximum VDSL2 distance reach of up to 1.4km.

High-performance Ethernet over VDSL2 Transmission

Via the latest VDSL2 technology,  the Planet IVC-234GPT offers high-speed access to Internet, up to 200Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s new G.993.5 vectoring technology, the IVC-234GPT offers a stable yet high-speed point-to-point network access up to a duplex data transmission rate of 300Mbps. It provides 2 selective transmission modes -- asymmetric mode or symmetric mode -- for the transmission of upstream and downstream signals.

Asymmetric mode – downstream up to 300Mbps and upstream up to 100Mbps

Symmetric mode – downstream up to 200Mbps and upstream up to 200Mbps

The symmetric mode provides similar transmission rate on both downstream and upstream while the asymmetric mode performs higher transmission quality in short range. In all, when the IVC-234GPT is in the symmetric mode, it provides a better upstream performance, and when it is in the asymmetric mode, it gives a better downstream performance. It also works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure.

Delivering High-demanding Service Over Long Distance Connectivity for ISP/Triple Play Devices

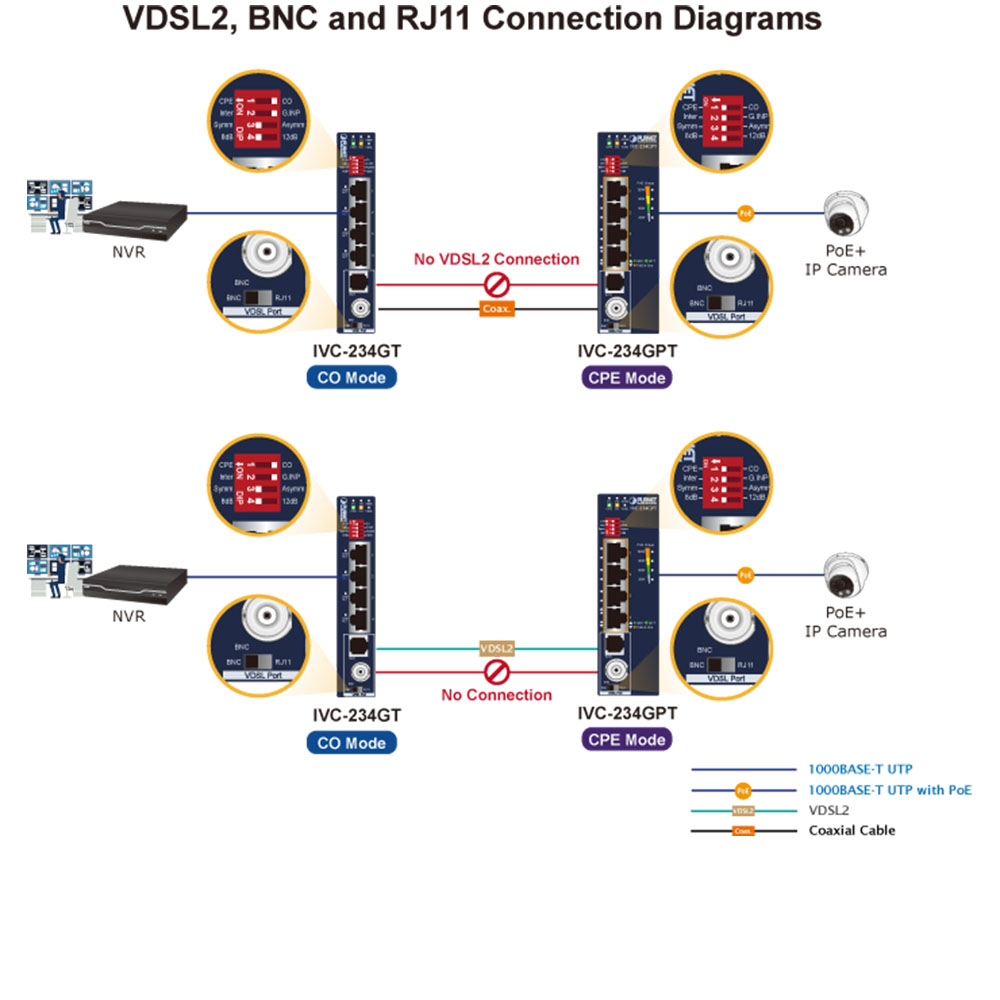

The IVC-234GPT is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from the existing analog system to full digital system. It features two types of VDSL2 transmission, the VDSL2 coaxial cable and VDSL2 RJ11 telephone wire. A normal UTP cable can only be extended up to 100 meters, but with the IVC-234GPT, the distance for Ethernet networking can be extended up to 1,400 meters (4,593ft.).

The Planet IVC-234GPT provides an excellent bandwidth demand for the triple play devices for entertainment and communication. With the asymmetric data transmission of 306/60Mbps (G.INP, Asym, 8dB), the IVC-234GPT enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on, which is ideal for the following network applications:

- Long-distance IP network devices

- IP digital signage

- Cable TV to IPTV

- Distance video education

- Electronic billboards

- Other applications

If you have coaxial cable or RJ11 telephone wire in your existing environment, you can install a pair of the IVC-234GPT very simply without the need to build additional network wires, thus saving costs for network construction.
