PLANET IVC-2004PT, an Industrial grade Ethernet Extender with PoE supported, is integrated with three advanced technologies:
  • Extends Ethernet over coaxial cable or phone wire
  • IEEE 802.3af Power over Ethernet
  • Industrial wide-ranging operating temperature
The IVC-2004PT is designed to utilize the commonly existed coaxial cables or phone wires to extend the UTP Ethernet over 100m distance limitation and transmits both power and data over single Ethernet cable to remote PoE capable devices in heavy industrial demanding environments.

IEEE 802.3af Power over Ethernet Integrated
The IVC-2004PT provides 4 10/100Mbps copper ports with 4 IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the IVC-2004PT is an ideal solution to deploying surveillance system, and securing control and wireless service in climatically demanding wide temperature range (-40 to 75 degrees C) environments.

Long-reach Ethernet
To extend the network distance and provide reliable Ethernet networking in hardened environments, the IVC-2004PT is equipped with one asymmetric / symmetric Ethernet extender port. The extender port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and the IVC-2004PT offers the absolutely fastest data transmission speed up to 99/65Mbps over existing coaxial cable and telephone wire without the need of rewiring.

Flexible Combination of Applications
The IVC-2004PT helps users to flexibly re-deploy a new local Intranet in the apartment, intelligent transportation systems, building automation, campus and hospitality environment by applying the original network structure without spending extra cost. The IVC-2004PT can be adjusted to Master or Slave mode via a DIP switch. It also can be set up to connect with the other IVC-2004PT or with other PLANET Ethernet extenders -- the IVC-2002, VC-201A and VC-202A. Therefore, users can easily expand the current network structure easily and more flexibly.

Environmentally Hardened Design for Industrial PoE Networks
The IVC-2004PT provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curbside traffic control cabinets. The IVC-2004PT is packaged in a compact, IP-30 rugged strong case that allows operating in wide temperature range of -40 to 75 degrees C and installation with either DIN rail or wall mounting for efficient use of cabinet space.

Key Features

• Integrated address look-up engine, supports 2K absolute MAC addresses• Supports up to 1536 bytes packet size, 802.1Q VLAN tag transparent
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Auto-MDI / MDI-X detection and auto-negotiation with half-duplex / full-duplex modes for 10 / 100Base-TX RJ-45 port
• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
Data Communication

• Supports ESD 6000V DC Ethernet protection
• Supports EFT 6000V DC protection for power line
• Redundant power design: 48V DC Power Input for PoE
• DIN rail and wall mount design
• -40~75 degree C operating temperature
• IP-30 aluminum metal case protection
Industrial Design

• Remote power feeding up to 100m
• Circuit protection prevents power interference between ports
• Auto-detects powered device (PD)
• Supports PoE Power up to 15.4 watts for each PoE port
• 48V DC Power Input for PoE and 12~ 36V DC for non-PoE devices
• 4 x Ports IEEE 802.3af Power over Ethernet / PSE Standard
IEEE 802.3af PoE

 and Downstream signals
• Defines Asymmetric (Band Plan 998) and Symmetric band plans for the transmission of Upstream
• Selectable BNC and RJ-11 mode for the data transmission
• One box design, Master / Slave mode selectable via DIP Switch
• Cost-effective Long-reach Ethernet (LRE) solution
• Ethernet over twisted pair / coaxial


Industrial Area Department / Workgroup PoE Switch
With 4 PoE, in-line power interfaces, the PoE Industrial Ethernet Extender IVC-2004PT can build a power centrally controlled IP phone system, IP camera system, or wireless AP group for the enterprise. For instance, 4 IP cameras or wireless APs can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the offices. Without the power-socket limitation, it makes the installation of cameras or WLAN AP easier and more efficiently.
Flexible Industrial Extender includes BNC and RJ-11 Connection

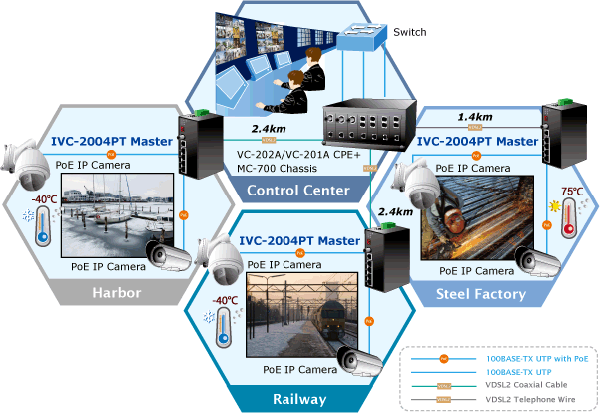

The IVC-2004PT can operate stably under temperature range from -40 to 75 degrees C so it can be installed in any harsh environment. It is also compatibles with PLANET Ethernet over VDSL2 Converter VC-201A and VC-202A therefore users do not need to spend extra cost to deploy a new local Internet in apartment, hotel, campus and hospitality environment. The network administrator can re-deploy the original network structure with the IVC-2004PT with no further effort. For example, PLANET MC-700, MC-1500 and MC-1500R chassis with the VC-201A and VC-202A inside are set as CPE (Customer Premises Equipment) mode which is placed in the wiring center (MDF room). On the other hand, it connects an IVC-2004PT extender in Master mode by using telephone line or coaxial cable. Therefore, the new network structure can be constructed efficiently.


Hardware Specifications
Extender Ports • Coaxial: 1 BNC, female connector
• Phone-Line: 1 RJ-11, female connector
Ethernet LAN Ports • 10/100Base-TX: 4 RJ-45, auto-negotiation and auto-MDI / MDI-X
• 4 PoE ports (Port1 ~ 4)
DIP Switch 4 position DIP switch
Functionality • Master / Slave mode select
• Selectable BNC and RJ-11 mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding • DMT (Discrete Multi-Tone) line coding
- ITU-T G.997.1
- ITU-T G.993.1
- ITU-T G.993.2 (VDSL2 Profile 17a Support)
LED Indicators • System
 P1 (Green)
 P2 (Green)
 Fault (Green)

 Master (Green)
 Slave (Green)
 ACT (Green)
 Sync. (Green)

• 10/100Mbps port
 LNK / ACT (Green)
 PoE In-Use (Orange)
Cabling • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable:
    –50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent;
    –75ohm, RG-6 (Distance up to 2.4km)
• Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Dimensions (W x D x H) 135 x 87.8 x 50 mm
Weight 631g
Power Requirements 48V DC for PoE Devices
12 ~ 36V DC for Non-PoE Devices
Redundant power with polarity reverse protection function
Power Consumption 66.4 watts / 226BTU max. (PoE)
5.64 watts / 19.24BTU (non-PoE)
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
BNC (Coaxial Cable)Asymmetric (Download / Upload)
 200m -> 99/65Mbps
 400m -> 99/64Mbps
 600m -> 97/59Mbps
 800m -> 94/51Mbps
 1000m -> 84/45Mbps
 1200m -> 73/37Mbps
 1400m -> 61/28Mbps
 1600m -> 54/20Mbps
 1800m -> 48/13Mbps
 2000m -> 38/9Mbps
 2200m -> 35/6Mbps
 2400m -> 31/4Mbps

Symmetric (Download / Upload)
 200m -> 95/99Mbps
 400m -> 92/97Mbps
 600m -> 81/82Mbps
 800m -> 71/70Mbps
 1000m -> 60/57Mbps
 1200m -> 50/44Mbps
 1400m -> 42/33Mbps
 1600m -> 37/27Mbps
 1800m -> 29/22Mbps
 2000m -> 23/21Mbps
 2200m -> 19/17Mbps
 2400m -> 19/13Mbps
RJ-11 (Phone-Line)Asymmetric (Download / Upload)
 200m -> 99/63Mbps
 400m -> 91/48Mbps
 600m -> 71/32Mbps
 800m -> 53/18Mbps
 1000m -> 38/8Mbps
 1200m -> 33/5Mbps
 1400m -> 28/2Mbps

Symmetric (Download / Upload)
 200m -> 91/99Mbps
 400m -> 74/79Mbps
 600m -> 54/51Mbps
 800m -> 38/34Mbps
 1000m -> 27/21Mbps
 1200m -> 24/15Mbps
 1400m -> 21/10Mbps
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Type End-Span
PoE Power Output 48V DC Per Port, 350mA. Max. 15.4 Watts
PoE Pin Assignment 1/2(+), 3/6(-)
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet
IEEE 802.3x Full Duplex Pause Frame Flow-Control
- G.993.1
- G.997.1
- G.993.2 (Profile 17a Support)
Operating Temperature -40 ~ 75 Degree C
Operating Humidity 5~90%, relative humidity, non-condensing
Storage Temperature -40 ~ 85 Degree C
Storage Humidity 5~90%, relative humidity, non-condensing
