SAR-XPOE-10MG-BT Industrial 1-Port IP67 Waterproof Multi-Gigabit 802.3bt PoE++ Extender 120W

The SAR-XPOE-10MG-BT is an industrial IP67-rated 1-port multi-gigabit 1G/2.5G/5G/10GBase-T 802.3bt PoE++ PoE Extender with optional 37-57VDCInput designed especially for PoE applications that require high power and fast data rates. The SAR-XPOE-10MG-BT can obtain a maximum of 120-watt PoE power from 802.3bt PoE++ input port or 37-57VDC power supply, and its output port can supply a maximum of 90-watt power, extending both the multi-Gigabit Ethernet Data and 802.3bt Power over Ethernet over the UTP cable.

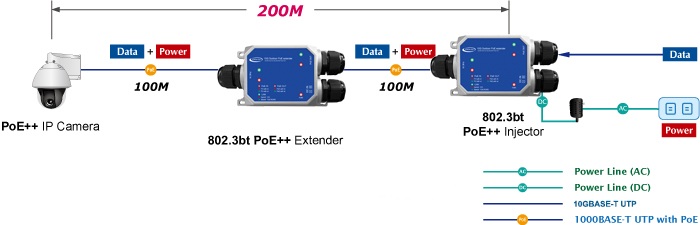

The SAR-XPOE-10MG-BT provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. The SAR-XPOE-10MG-BT is equipped with 2-port 1G/2.5G/5G/10GBase-T auto-negotiation RJ45 connectors and 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable glands, it can make the general RJ45 connector weather-proof and provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters.

The SAR-XPOE-10MG-BT is with redundant power supplies to support both 802.3bt 120W PoE Input and Passive DC37-57V IN MAX 120W. Each of the power supplies will have the capacity to run the device on its own, which will allow it to operate even if one goes down.

* The SAR-XPOE-10MG-BT can also be used as PoE Injector when using the DC power input only.
