IVS-H125P - H.264 PoE Internet Video Server

IVS-H125P - H.264 PoE Internet Video Server
IVS-H125P - H.264 PoE Internet Video Server


Efficiently Migrate Analog CCTV System to IP-based PoE Security Solution
PLANET IVS-H125P one-channel PoE Internet Video Server offers the highly efficient H.264 video compression, which greatly reduces bandwidth and storage requirements without compromising image quality. It provides an easy and high quality solution to integrating analog CCTV cameras into the IP-based video surveillance system. The IVS-H125P is the ideal choice for casinos, airports, traffic surveillance and prisons, anywhere an analog surveillance system is already installed and full frame rate is needed.

Full Frame Rate in All Resolutions
The IVS-H125P supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 4CIF (D1) resolutions at 30/25 (NTSC/PAL) frames per second (fps). It also can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions, meaning several video streams can be configured with different compression formats, resolutions and frame rates for different needs.

Advanced Event Management
The IVS-H125P supports a number of advanced features that increase monitoring flexibility and capabilities, including AV out to perform the two-way audio function, micro SD/SDHC card slot for local storage, RS-485 for connection to an optional pan/tilt enclosure, and input/output port for connecting external sensor devices such as door sensors and light relays to enable real-time alarm notification and event management.

Flexible Deployment and Power Functionality
The IVS-H125P applies IEEE 802.3af Power over Ethernet (PoE) that increases the deployment flexibility, eliminates the need for power cables and reduces installation costs. The IVS-H125P can be powered through standard Ethernet RJ-45 cable from PoE sourcing equipment; and the IVS-H125P then can provide DC 12V to the analog cameras via male to male DC power cable connecting to its power jack. The IVS-H125P is ONVIF compliant and therefore interoperable with other brands in the market. With 64-CH central management software included, the IVS-H125P is indisputably the top choice for reliable and high performance surveillance.
*This device supports Android APP. Download Now!


Video / Audio

  • H.264 / MPEG-4 and M-JPEG video compression simultaneously
  • Simultaneous multi-stream support
  • Up to 30/25 (NTSC/PAL) fps for all profiles
  • 3DNR (3D Noise Reduction) to improve picture quality at low lux
  • 2-way audio support with enhanced audio quality

Network and Configuration

  • Auto MDI/MDI-X supported
  • Compliant with IEEE 802.3af PoE interface for flexible deployment
  • Supports both IPv6 and IPv4 protocols
  • RTSP / UPnP / 3GPP / HTTPS protocols selectable

Easy Installation & Management

  • ONVIF compliant
  • Built-in Samba client for NAS
  • 3GPP for 3G mobile remote applications
  • RS-485 interface for P/T scanner control
  • Built-in micro SD/SDHC card slot for on-board storage

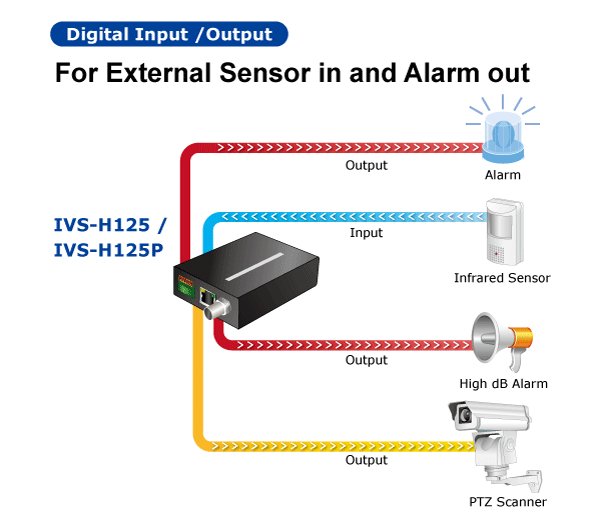

  • Digital Input / Output for easy integration with sensors and alarms
  • Cam Viewer 3 central management software supported

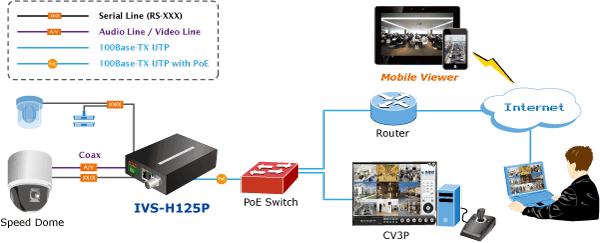

Turn Traditional Surveillance into IP Network Surveillance

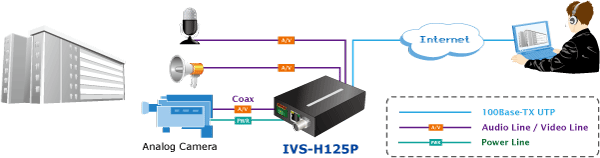

The IVS-H125P enables you to monitor your house, office or production line in the factory via the existing traditional analog cameras through Internet. The administrators can easily place the IVS-H125P Internet Video Server wherever a network connection is available and efficiently turn the analog camera monitoring system into the IP-based surveillance.

Compatible with Cam Viewer 3 Lite/Pro for Advanced Management
The supervisor can manage the IVS-H125P through Cam Viewer 3 Lite/Pro central management software for advanced surveillance features such as monitoring and recording images/videos from multiple cameras simultaneously by a single PC, laptop or any intelligent mobile device.


Video Compression H.264 / MPEG-4 / M-JPEG
Video Resolution4CIF (D1), CIF, QCIF
Frame Rate30/25 (NTSC/PAL) fps in all resolutions
Image SettingAE, AWB
3D noise reduction
Color, brightness, sharpness, contrast
Mirror / Flip
8 Privacy Masks
Text, time and date overlay
StreamingSimultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP / HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
Audio StreamingTwo-way audio
Audio CompressionRTSP: G.711 64kbps, G.726 32kbps
MicrophoneExternal microphone input
Audio OutputAdjustable audio output gain
Network and Configuration
StandardIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af PoE
SecurityPassword protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users20 clients on-line monitoring at the same time
System Integration
Application Programming InterfaceOpen API for software integration
ONVIF Compliant
Alarm TriggersIntelligent video motion detection, audio detection and external input
Alarm EventsFile upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Pre- and post-alarm buffering
Environment Specifications
Power Requirements48VDC, 0.3A over IEEE802.3af Class 3
Power Consumption4W (max.)
Operating Temperature0 ~ 40 degrees C
Operating Humidity20 ~ 80% (non-condensing)
Weight (including lens)215g
Dimensions (W x D x H)94 x 70 x 26 mm
EmissionCE, FCC
Connectors10/100Mbps Ethernet, RJ-45
BNC connector, 75 ohm impedance
DC power jack, 12VDC, 0.4A out (for analog camera only)
Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External mic input
Composite video / audio output
Micro SD/SDHC card (max 32GB, Class 6)
Factory default reset
