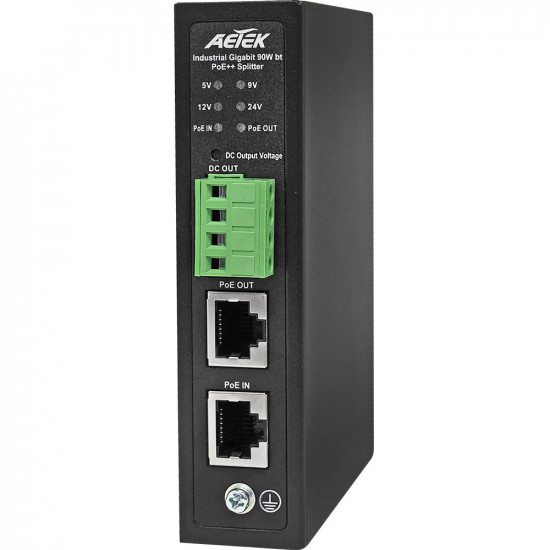

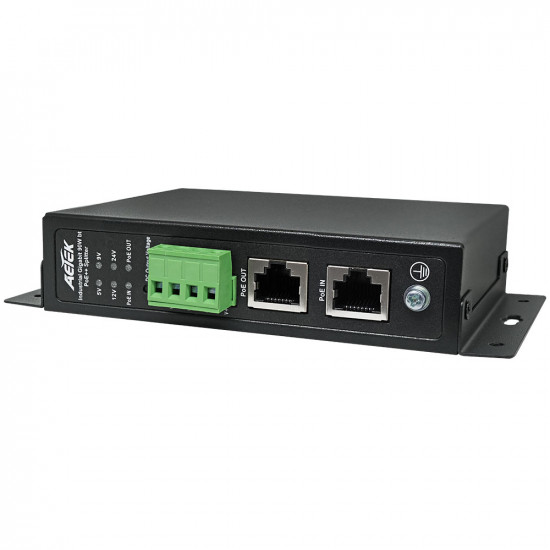

S69-220 Industrial Gigabit Dual Power PoE Splitter

The AETEK S69-220  is an industrial dual power output PoE Splitter which supports 802.3af/at/bt PoE output standards. Powered by any Power Sourcing Equipment (PSE) that supports 802.3at/bt standards, S69-220 can split the power output into 2 forms, DC voltage (5V / 9V / 12V /24V) and 802.3 af/at/bt PoE, to fulfill both DC power and PoE demands at the same time.

With this feature the AETEK S69-220 can supply PoE to PoE input supported IP devices, and DC power to non-PoE IP devices simultaneously. This space-saving design eliminates additional power receptacles which usually take up too much room.

Key Features

- 2 x 10/100/1000Mbps RJ45 Port

- 1 x DC power output interface (5V / 9V / 12V /24V)

- Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at IEEE802.3bt Standards

- 802.3 af/at/bt PoE Input

- 802.3 af/at//bt PoE Output

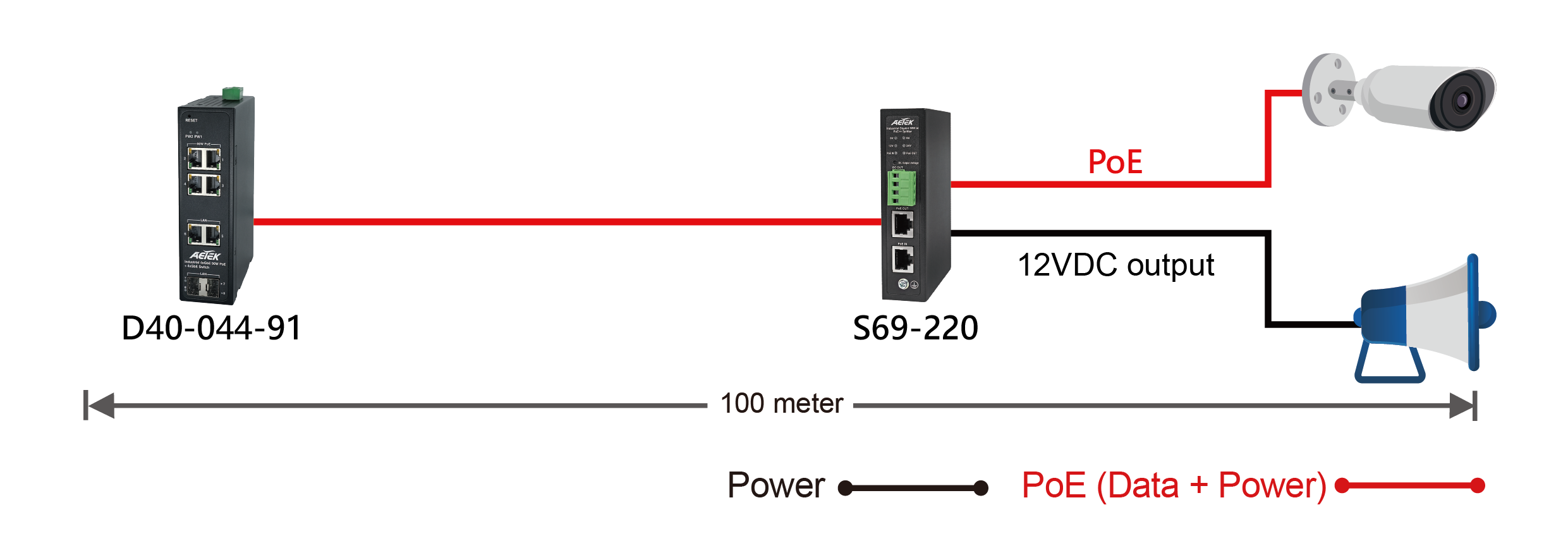

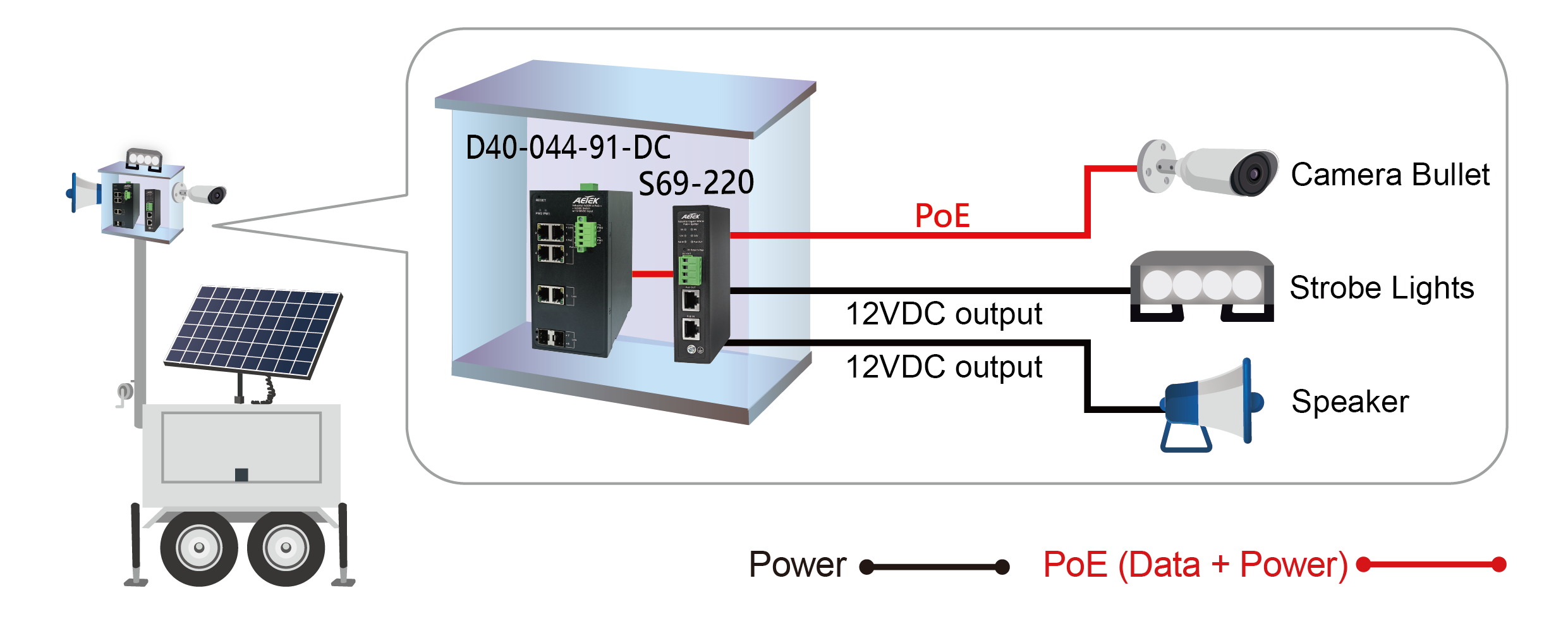

Applications
