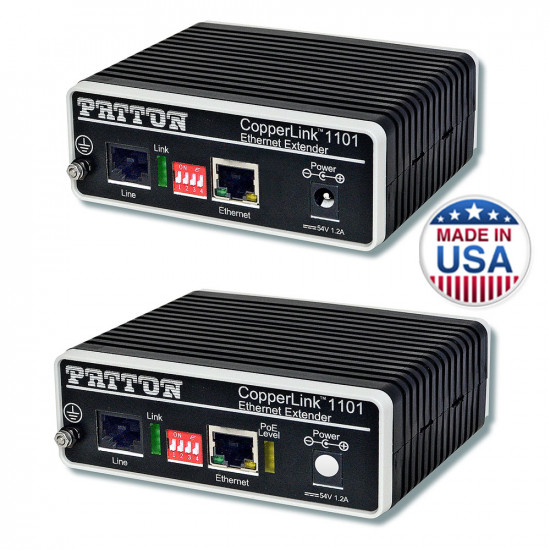

Patton CopperLink CL1101/PAFA/RJ45/EUI-2PK PoE Ethernet Extender Kit (1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC)

* Kit includes Local-CO (CL1101/L/P/RJ45/EUI) and Remote-CPE (CL1101/R/PAFA/RJ45/E)

With global expansion of the Internet of Things (IoT), demand for IP/Ethernet-connected devices is soaring. Billions of devices are already capable of connecting to the Internet. Ethernet—and power-over-Ethernet (PoE) in particular—has grown in popularity because it strikes the perfect blend of speed, cost, and ease of use.

Ethernet, however, presents a few drawbacks that may overshadow the benefits by creating escalating infrastructure costs and system downtime. The Ethernet standard specifies a distance limitation of 328 ft (100 m), which restricts location options for device installation. Standard Ethernet also requires Cat 5 cabling or better, which often leads to installing new cabling infrastructure—involving tearing into walls, ceilings, pavement, and worse.

The CopperLink CL1101 kit from Patton enables Ethernet connectivity over previously installed copper infrastructure. The solution breathes new life into circuits previously deployed for such traditional non-IP applications as RS232/485 controls, alarms, CCTV, analogue phones, intercom speakers, and others.

Instantaneously install PoE-compliant devices such as wireless access points (WAPs), IP cameras, IP telephones, IP door stations, HVAC controls, and more—with no additional overhead cost. With the extended reach the CL1101 kit provides, you can install your IP terminal equipment exactly where you want it! Flexibility of device location is paramount in such applications as building security, where increased perimeter dimension and expanded spot coverage area are critical.

Ethernet Extension

Extends 10/100Base-TX Ethernet over 1005meters using 2-wire, 24-AWG twisted-pair, Cat 3, Cat 5e/6/7.

Delivers PoE

PowerPlus technology powers up both the remote CopperLink extender and the PoE enabled device connected to it. No power is required at the remote location.

Transparent LAN Bridging

Passes higher layer protocols, including 802.1Q VLAN tagged and untagged packets. Fully transparent to various video compression schemes such as WMV, MPEG-4 and MJPEG.

Plug and Play

Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex.

Made in the USA

This Patton equipment is designed by Patton engineers and are built in Patton's Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Line Interfaces (Data)

1 x RJ45

Supports 1-4 pairs

Ethernet Interfaces

1 x RJ45 Auto-Sensing 10/100Base-TX with full or half-duplex operation


Power, Line, (10 or 100 operation), Ethernet, and PoE


Transparent to high layer protocol

Supports 802.1Q VLAN tagged frames

Transparent to IP video schemes

Fully transparent to compression schemes such as WMV, MPEG-4, and MJPEG

Power Injection (PSE only)

DC voltage on Ethernet port

54 VDC

Power Consumption

1.5 W

Power Supply

External AC Adapter 100–240 VAC to 54 VDC

Input: 30–57 VDC (Recommended 54 VDC)

MTBF (Mean Time Before Failure)

83,043 hours


Temperature: 0 to 50°C (standard)

Humidity: 10 to 95% (non-condensing)


10.5 W x 3.8 H x 9.5 cm

Net 22 g


FCC Part 15A, Class B

CE Mark

EMC Directive 89/336/EEC

LVD Directive 73/23/EEC


Patton CopperLink CL1101 Extends Power and  Ethernet to compliant or legacy PoE devices using already installed twisted-pair cable.

CopperLink™ 1101 application diagram 1

CopperLink™ 1101 application diagram 2

Twisted-Pair Data Reach Estimates
 10 Mbps100 Mbps
Description2 wire

4 wire

2 wire4 wire8 wire
Min. distance

1.83 m

39.9 m

1.83 m

1.83 m

1.83 m

Max. distance

762 m

1005 m

278.9 m

324.6 m

563.6 m
Min. distance link time5 sec157 sec5 sec5 sec5 sec

Max. distance link time5–10 sec8–265 sec5 sec6 sec6 sec
Max. distance PoE classClass 1Class 2Class 2/3Class 4Class 3/4

Twisted-Pair Power Delivery Estimates
PoE Class2 wire4 wire6 wire8 wire

(3.84 W)

807 m

1662 m

2549 m

3521 m

(6.49 W)

484 m

1012 m

1536 m

2104 m
(12.95 W)

239 m

484 m

768 m

1052 m
(25.50 W)

80 m

199 m

365 m

484 m
Class 2/3Class 2/3Class 4Class 4Class 4
