MF-PAM-RAIL2N-2Eth-xxx,V1 MiniFlex TDM-based SHDSL.bis Modem

Compact SHDSL Modems for Harsh Environments

Available Options

MiniFlex TDM-based SHDSL.bis Modem (MF-PAM-RAIL2N-2Eth-xxx,V1)

Qty

Request A Quote

Ask Question

Add to Wish List Compare this Product

*** Please see FlexDSL MiniFlex Brochure for full Product Range in Downloads ***

The FlexDSL MiniFlex TDM-based SHDSL.bis modem product family offers a wide range of products, which are based on the latest SHDSL.bis standards (ITU-T G.991.2 & ETS TS 101524), while also being fully interoperable with all other existing FlexDSL SHDSL equipment (Orion1, Orion2, Orion3). The FlexDSL MiniFlex supports beside of the standardised TC-PAM16/32 also the new extended TC-PAM4/8/64/128 line coding. SHDSL.bis allows symmetrical data and voice transmission at speeds up to 15Mbps over a single pair of copper. In addition, the FlexDSL MiniFlex SHDSL.bis modem range also supports DSL channel bonding for up to 2 copper pairs in order to achieve speeds up to 30.4Mbps.

If using in a chain, in case of a failure of an intermediate MiniFlex SHDSL.bis, the SHDSL lines can be bypassed with the help of an optional Bypass Relay Line Card. In that case, the DSL Bypass Relay Line card will automatically switch the incoming SHDSL ports to the outgoing SHDSL ports, keeping the chain in operation.

An integrated 2-port Ethernet layer 2 managed switch with VLAN, QoS and RSTP support (10/100BaseT) ensures connectivity to IP services.

The FlexDSL MiniFlex SHDSL.bis modems are a perfect solution for a wide range of applications in which IP services need to be transmitted over copper wires. The MiniFlex product is a small-sized Orion3 NTU unit with all the functionality included.

Like all FlexDSL Orion products the FlexDSL MiniFlex SHDSL.bis modems are based on industrial components and manufactured in Switzerland according to highest quality standards providing additional value due to the extended temperature ranges and higher reliability. The combination of comprehensive functions providing maximum flexibility together with the higher quality of the FlexDSL MiniFlex SHDSL.bis product family make it the perfect choice for all DSL requirements.

Number of supported pairs

- 2 x SHDSL.bis

- Up to 15.2Mbps data transmission per pair

Supported standards

ITU-T G.991.2 (G.shdsl)

ITU-T G.991.2 (G.shdsl.bis)

- PAM4/8/16/32/64/128

- Point-to-Point, Point-to-Multipoint & Ring Operation

- Bypass Relay Feature

- Two Port Ethernet Switch 10/100BaseT or 10/100/1000Base-TX

- QoS, VLAN and RSTP Support

- Transparent Transmission of Modbus RTU/ASCII, DNP3 and IEC 60870.5 Protocols

- Console Port, Telnet, Web, SNMP Management

- Secure access over SSH, SNMPv3 and HTTPs

- 802.1x Authentication

- RADIUS and LLDP support

- Traffic Encryption (depending on a model)

- 24/48VDC or 110/230VAC Powered, Low Power Consumption

- Included Primary Protection

- Robust DIN-Rail Metal Enclosure

- Small Size

- Extended Temperature option (-40°C to +80°C)

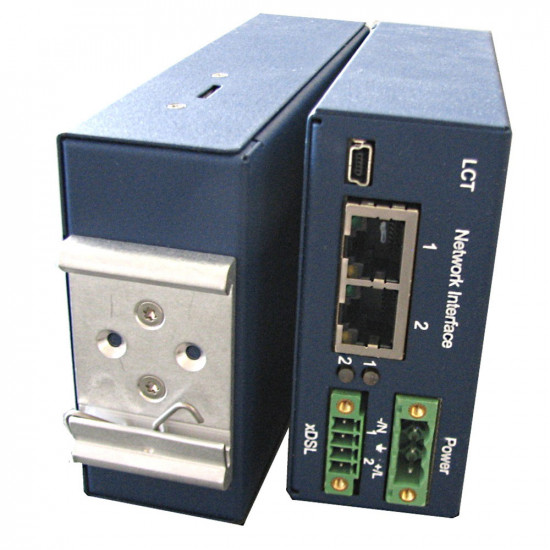

MiniFlex SHDSL.bis Din-Rail Modem

Models: MF-PAM-RAIL2N-2Eth-24V,V1

MF-PAM-RAIL2N-2Eth-230V, V1

MF-PAM-RAIL2N-2Eth-12V, V1

MF-PAM-RAIL2N-2Eth-24V, V1-PC

MF-PAM-RAIL2N-2Eth-230V, V1-PC

DSL Version: SHDSL / SHDSL.bis / Extended

Modulation: TC-PAM4 / TC-PAM8 / TC-PAM16 / TC-PAM32 / TC-PAM64 /TC-PAM128

Data Rate: 128kbps - 30.464Mbps, 2x 15.232Mbps

Copper Pairs: 2 with Modes Master / Slave / Auto / Multipoint / Multipair / Ring

Interface: 2x Ethernet 10/100BaseT (Layer 2 Managed Switch) 1x USB 2.0 (Local Consol Port)

Power: 9 to 36VDC , 18 to 72VDC or 85 to 264VAC & 120 to 370VDC, 4W Typ.

Physical Interfaces: RJ45 (Ethernet), Phoenix Mini Combicon (Power & SHDSL), Mini-B (USB)

Management: Console Port, Telnet, SSH, HTTP, HTTPs, SNMPv1/v2c/v3, SD-Card support Console Port, Telnet, Web, SNMP and SD-Card support

Temperature: Standard: -5 to +45ºC, Extended: -25 to +80ºC

PC–Version: Protective Coating of PCB’s against Humidity

MiniFlex SHDSL.bis Line Card

Model: MF-PAM-SR2L-2Eth, V1

DSL Version: SHDSL / SHDSL.bis / Extended

Modulation: TC-PAM4 / TC-PAM8 / TC-PAM16 / TC-PAM32 / TC-PAM64 /TC-PAM128

Data Rate: 128kbps - 30.464Mbps, 2x 15.232Mbps

Copper Pairs: 2 with Modes Master / Slave / Auto / Multipoint / Multipair Interfaces: 1x Ethernet 10/100BaseT on Backplane to Switch 2x Ethernet 10/100BaseT on the front panel 1x USB 2.0 (Local Console Port)

Physical Interfaces: Phoenix Mini Combicon (SHDSL), RJ45 (Ethernet), Mini-B (USB)

Management: Console Port, Telnet, SSH, HTTP, HTTPs and SNMPv1/v2c/v3t

MF-PAM-RAIL2N-2Eth-24V, V1 MiniFlex SHDSL.bis Dinrail Modem

MF-PAM-RAIL2N-2Eth-230V, V1 MiniFlex SHDSL.bis Dinrail Modem

MF-PAM-RAIL2N-2Eth-12V, V1 MiniFlex SHDSL.bis Dinrail Modem

MF-PAM-RAIL2N-2Eth-24V, V1-PC MiniFlex SHDSL.bis Dinrail Modem - w/ Protective Coating PCB

MF-PAM-RAIL2N-2Eth-230V, V1-PC MiniFlex SHDSL.bis Dinrail Modem - w/ Protective Coating PCB

MF-PAM-SR2L-2Eth, V1 MiniFlex SHDSL.bis Line Card
